Can you mix AC and DC loads on the same RIM100?

Estimated Reading Time: < 1 Minute
705  Ron De Pastino November 6, 2019  RIM100, RIM100 0

Yes, each channel is optically isolated allowing the end users to “mix and match” the load types you are interested in monitoring.

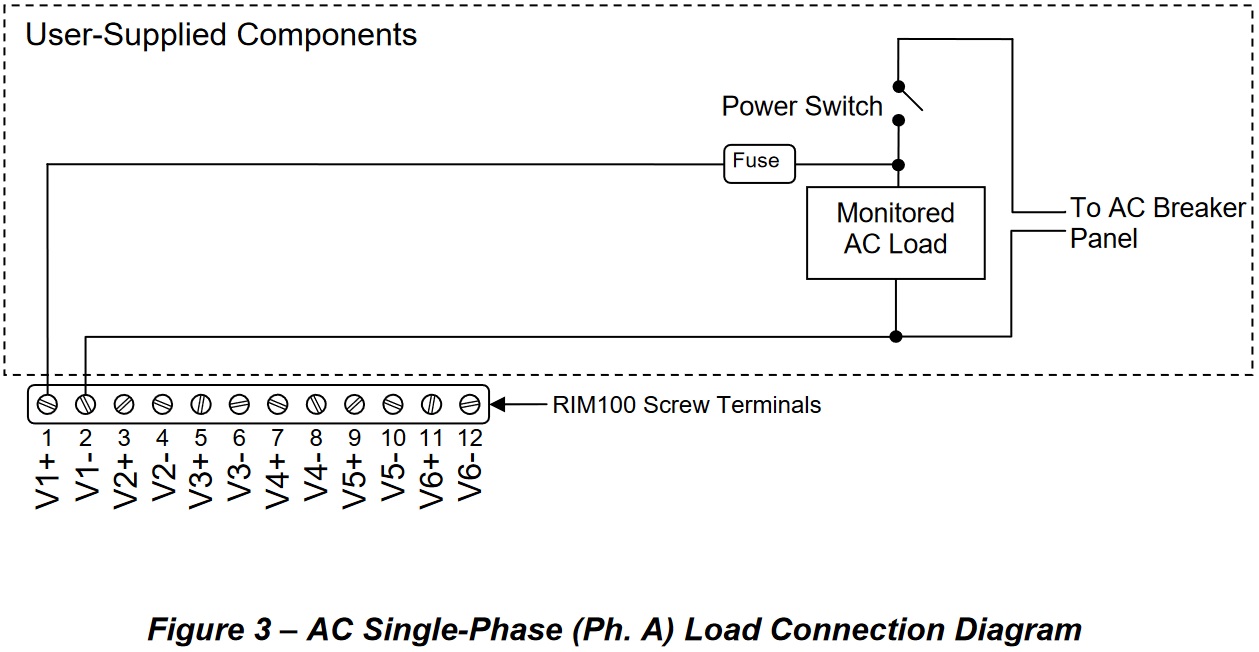

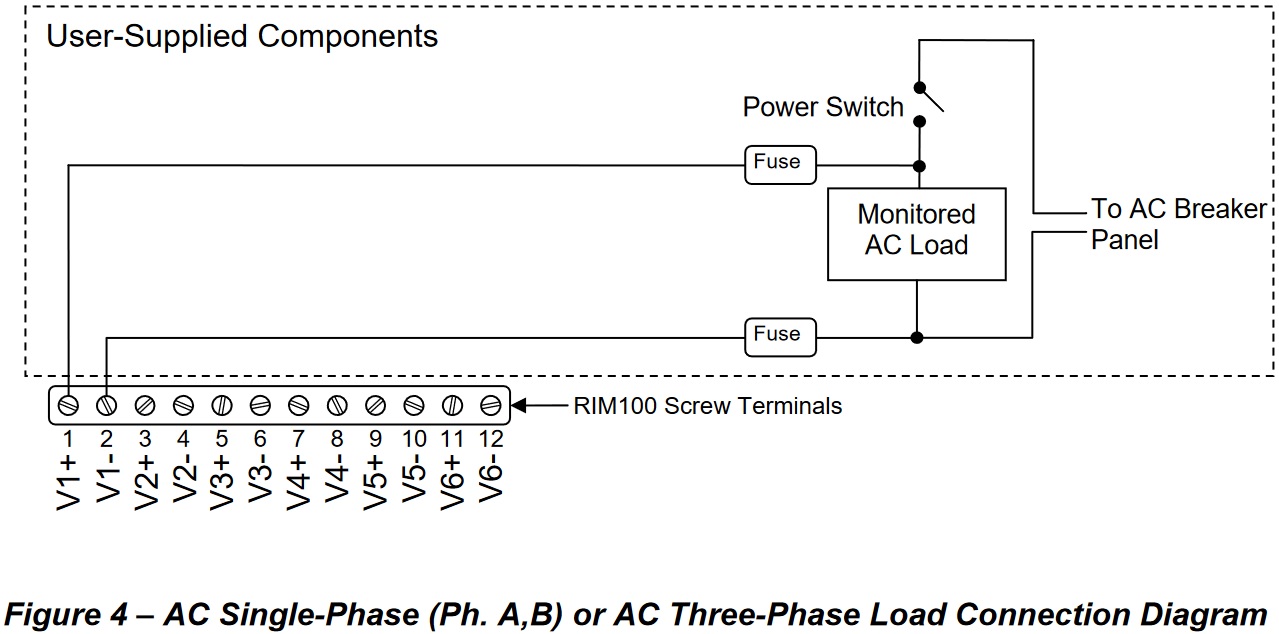

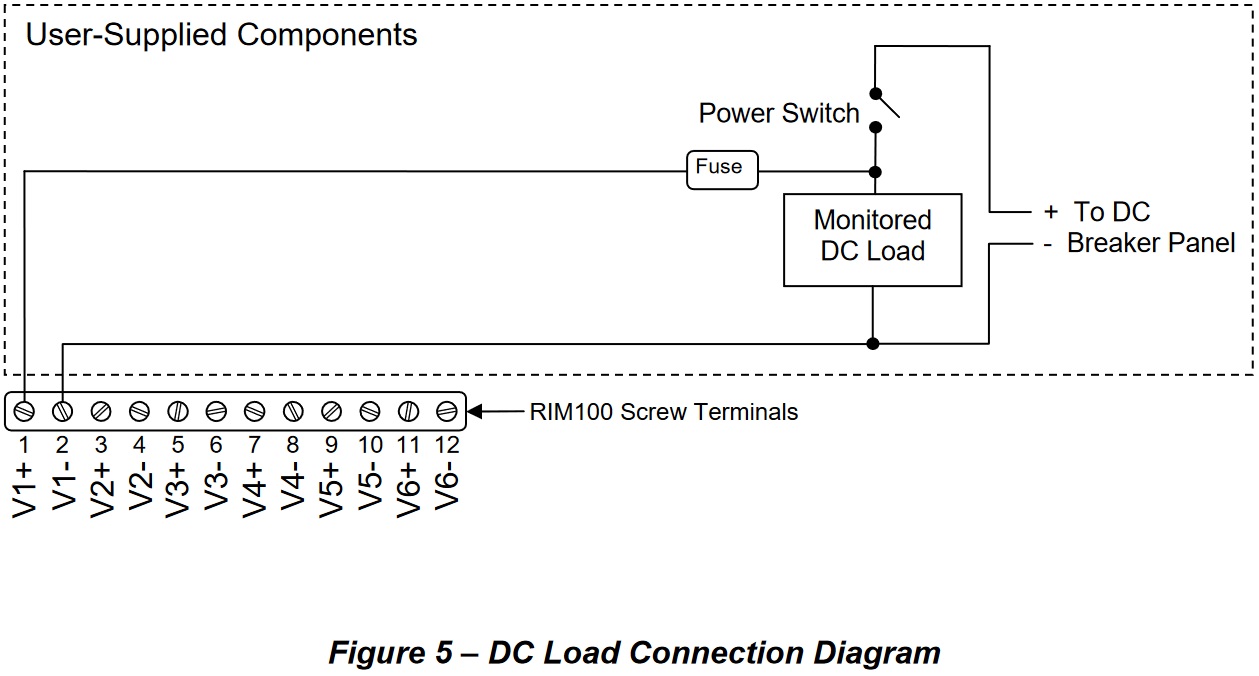

Please take note of the proper wiring installation for both the AC and DC load connections.
