What are the specifications for the Current Transformer (CT) that comes with the Maretron AC Monitor (ACM100)?

 The ACM100’s current transformer specifications are as follows:

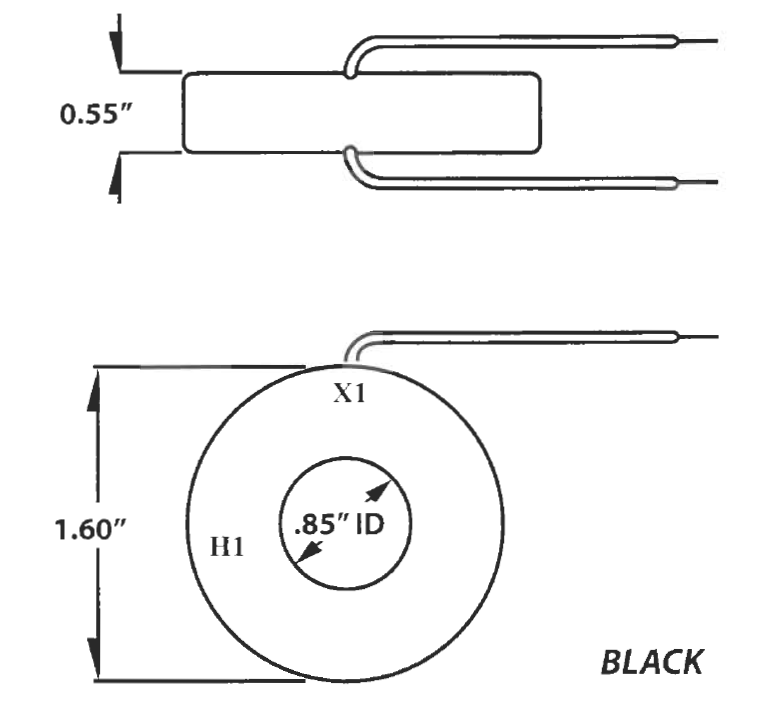

Part Number: M000630

Current Range: 100 Amps

Output Ratio to Input: 1000:1 (100maAC Max)

Frequency Range: 45-60HZ

Dielectric Withstand: 1000VAC (RMS)

Insulation resistance Class: .5KV

Fully Encapsulated

Signal Leads: Standard Length; 18”

Wire Size 18GA. 300VAC

Operating Temperature –40C to 80C

Accuracy: ± 1% @ 50-60HZ

_______________________________________________________________________________________________________________________________________

Part Number: M000612

Current Range: 400 Amps

Output Ratio to Input: 2000:1 (200maAC Max)

Frequency Range: 50-400HZ

Dielectric Withstand: 1000VAC (RMS)

Insulation Level: 600V, 10kV BIL Full Wave

Fully Encapsulated

Signal Leads: Standard Length; 60”

Wire Size 16GA. 300VAC

Operating Temperature –40C to 80C

Accuracy: ± 1% @ 50-60HZ
